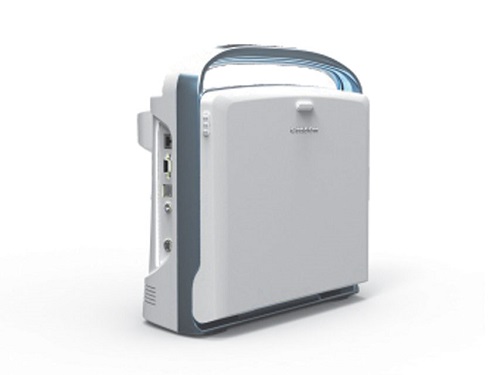

CHISON ECO5 Colour Ultrasound 2 Probe Connector
  • CHISON ECO5 Colour Ultrasound 2 Probe Connector

CHISON ECO5 Colour Ultrasound 2 Probe Connector
Product Code: GM-33865
 £7,500.00
 (£6,250.00 Ex. VAT)
Add to Cart
OR

Free UK Shipping

Quick Overview

Portable colour doppler system with a high-resolution 12 inch LED display.

The monitor can be rotated up to 30° and the alphanumerical keyboard is backlit to allow for comfortable, fatigue-free working.

Since the ultrasound machine is equipped with a high-performance Li-ion battery, the device is particularly easy and flexible to use.

Doppler 12” high resolution LED monitor, 8G high speed memory, 3 USB ports, 2 probe connectors, EASYVIEW™ archive system, without probe

Imaging modes:
B, B/B, 4B, B/M, M, CFM, PW

Imaging processing:
MCI (Multiple Compound Imaging)
i-image intelligent image optimization
THI (Tissue Harmonic Imaging) - trapezoidal
SRA (Speckle Reduction Algorithm) - Chroma
Full digital beam-former - full screen display mode
AIO (Automatic Image Optimization) - automatic PW trace
Other specifications as ECO3EXP

User interface
Fold-up control panel and alphanumeric keyboard
Back-lit keyboard for good visibility in dark room
Indicator lights identify activated keys
8 TGC slides for easy adjustment
Short cut knob for quick adjustment (hot key user- defined)
Neat and clear keyboard layout, doctor can remember easily
Interactive back-lighting - user defined preset

Streamlined workflow, one key to:
Select desired application with automatic preset
Optimize the image automatically (AIO) - make report
Save still image and CINE loop - measure
Print to PC printer* (laser or inkject) or video printer

EASYVIEW™ Archive system
-Image archive on hard disk and USB mobile storage
Multiple image formats: BMP, JPG, DCM, CIN, AVI
Cine review: auto, manual (auto review segment can be set) for 2D, M, PW images
Cine memory capacity (256 frames/10s)
3 USB ports

Norms
IEC 60601-1, IEC 60601-1-1 Electrical medical equipment,
IEC 60601-1-2 Electromagnetic compatibility,
IEC 60601-1-4 Programmable medical systems,
IEC 60601-2-37

Technical Specifications
Size - weight: 33.5x15.5xh 35 cm (13.2”x6.1”xh 13.8”) - 6.5 kg
Display: 12” LED, high-resolution colour 1024x768
Power: AC 100-240 V, 50-60 Hz; Rechargeable lithium-ion battery 14.8 V 4400 mAh
Software (language switchable by user): GB, IT, FR, ES, DE, CZ, TR, CN, RU
User manual: GB, IT, CN



View Product Manuals/Spec Sheet
