The scale has a large weighing platform to accommodate almost every wheelchair



It features low platform height and integrated access ramps on both sides facilitate access



It has a pre-tare  so that the weight of the wheelchair is deducted before weighing the patient.



The scale weighs up to 400kg  and has a rechargeable battery offering over 50 hours of continuous use.



It can be easily transported using two  rollers and a handle and does not require much storage space



The  scale can be converted quickly and easily into a multi-function balance. In this way patients can be weighed standing up on their own, using the support of the handrail or in a wheelchair



EC Approved Class Approval for medical use according to 93/42/EEC . Class III



Features

Large steel weighing plate with a non-slip and wearresistant surface

Secure and non-slip positioning with height-adjustable rubber feet

Intuitive operation using a keypad

PRE-TARE function for 5 different weights

BMI function to determine normal weight / surplus weight

Battery- or mains-powered

Wall mount for display device standard

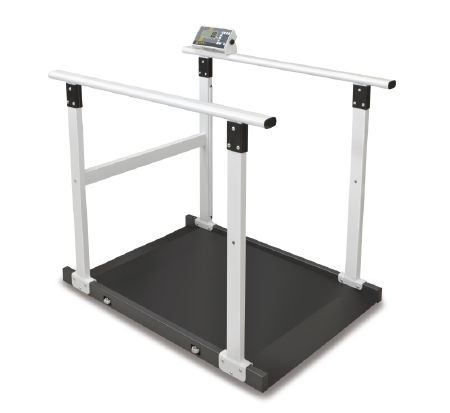

Optional handrail that can easly be fitted

For a more ergonomic system the display device can be fitted directly onto the handrail

3 Year warranty

Supplied manual  and specification



Specification

Cable length: 1.800 m

Cable length of display device: 1.800 m

Casing material: Steel lacquered

Dimensions of display device W×D×H: 210 mm x 110 mm x 50 mm

Dimensions of weighing plate W×D×H: 1255 mm x 1060 mm x 60 mm

Level indicator: yes

Material weighing plate: Steel lacquered

Overall dimensions mounted W×D×H: 1255 mm x 1060 mm x 69 mm

Revolving screw feet: yes

Wall mount: yes

Weighing surface WxD: 1000 mm x 1000 mm

Display digit height: 25 mm

Minimum load Min: 2 kg

Verification class: III

Verification value e: 100 g | 200 g

Power supply

Charging time: 14 h

Input voltage: 100 V - 240 V 50 / 60 Hz

Mains adapter/adapter included: CH EURO UK

Operating time: 50 h

Operating time (Backlight off): 45 h

BMI function: yes

Data hold function: yes

PRE-TARE function: yes

Vibration-free weighing (Animal weighing program): yes

Linearity: 100 g | 200 g

Readout [d]: 100 g | 200 g

Recommended adjusting weight: 400000000M1 mg

Recommended adjusting weight: 400 kg (M1)

Reproducibility: 100 g | 200 g

Resolution: 3 2.000

Warm up time: 10 min | 10 min

Weighing range Max: 300 kg | 400 kg

Weighing system: Strain gauge

Weighing units: kg
