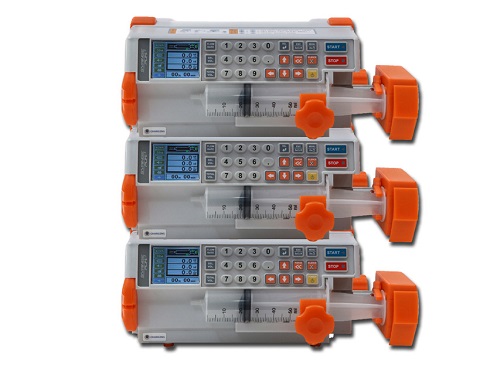

High-Precision Auto Syringe Pump

Click on image to view full picture

  • High-Precision Auto Syringe Pump

High-Precision Auto Syringe Pump
Product Code: GM- 35205
 £1,502.40
 (£1,252.00 Ex. VAT)
Add to Cart
OR

Free UK Shipping

Quick Overview

High-precision syringe pump for infusion and extrusion of solutions.

Easy syringe installing through one-touch method by slider hook, simple and easy setup process with its numerical silicon keypad.

Colour LCD displays infusion information, and shortcut key manages easy approach for frequent functions.

K.V.O. rate, purge rate, bolus and anti-bolus can be setup as operating application.

Flexible flow volume setting

Full program dosage feature (optional): it automatically calculates flow rate by patient's weight, injection's mass and melting.

Keep Vein Open (K.V.O.) feature: When reached to the preset value, it converts to low flow speed of 0.1 ml/h automatically to prevent flow route clog due to blood coagulation.

Standard compatibility with 5 major brands of syringes

Setting feature enables you to choose from following syringe brands: BD (Plastipak, Precise), TERUMO, RAYS, PENTAFERTE, KOVA.

Each pump can be calibrated for up to 10 different syringes.

Alarm and notification feature that notifies errors and emergencies with LED light and buzzer. Simultaneous visual and audio alarm.

Occlusion error range setting: you can set the pressure level of occlusion stage to High, Medium and Low by patient's age condition.

Suitable also for VET use.

Calibration for various syringes available on request.

Features
Supplied with battery.
Automatic set-up system (flow rate, time, delivery volume)
Easy and quick installation of syringe, just in five seconds

Technical Specifications
Flow volume setting range
Syringe 10ml: 0.1-300 ml/h
Syringe 20ml: 0.1-400 ml/h
Syringe 30ml: 0.1-500 ml/h
Syringe 50ml: 0.1-1,200 ml/h
Flow volume error margin ±2%
Infusion limit volume range 0.1~999.9ml (0.1 ml infusion interval)
Total estimated volume range 0.1~999.9ml (0.1ml infusion interval)
K.V.O rate(Vein maintaing function) 0.1-10 ml/h adjustable
Size 220x130x108 mm
Weight 2 kg (battery included)
Rapid flow volume(Purge) 0.1~1200 ml/h adjustable
Bolus: adjustable 0.1~1200 ml/h 0.1~1000 ml
Alarm features
Occlusion, K.V.O. (infusion completion), standby, near empty, low battery, device malfunction (CPU error), clamp/handle lever/slider disengaged, syringe disengaged.
Special features
Keypad lock, shortcut key, retain memory, remaining time, alarm repeat, open system, K.V.O., purge, bolus, anti bolus, occ. level, history call-back.
Power
AC 230V, 50/60Hz and DC9.6V inner source adapter DC 12 / 24V - 2A
Switchable at 110V / 60Hz - with adapter 35204
Maximum power consumption 45VA
Electric protection levels
Class II B, inner source device, CF type
Waterproof level IPX3
Battery type Ni-MH rechargeable
Battery using time 4 hours
Battery recharging time Minimum 6 hrs.
Battery life about 6 months.




View Product Manuals/Spec Sheet
