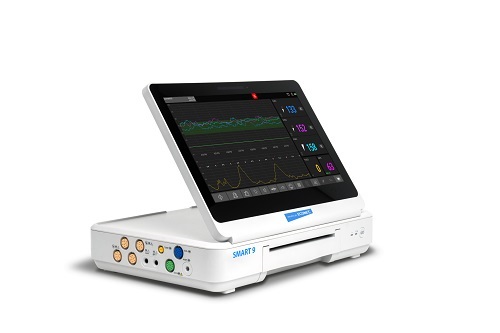

Smart 9 Fetal Monitor with Maternal Function



This fetal monotor  provide comprehensive, concurrent monitoring of both fetus and mother during labor, offering improved, integrated care.



The SMART 9 combines cutting-edge technology with maximum precision.



Its large 13.3" TFT-LCD color display with adjustable viewing angle ensures a clear and comfortable visualization of all parameters.



In addition to fetal monitoring, the system also measures maternal parameters such as NIBP, ECG, SpO?, respiration, and temperature providing a comprehensive assessment of both mother and child.



Thanks to waterproof (IPX68) probes with 12-sensor technology, the SMART 9 delivers highly reliable results even under demanding conditions.



HL7 compatibility ensure seamless integration into existing hospital networks, while the built-in thermal and network printer offers flexible documentation options.



With a battery runtime of up to 4 hours and an integrated CTG scoring system, the SMART 9 is the perfect choice for precise and connected monitoring both in daily clinical use and in mobile applications.



Features

13.3" TFT-LCD color display with adjustable viewing angle

Maternal parameters: NIBP, ECG, SpO?, respiration, temperature

Waterproof (IPX68) probes with 12-sensor technology

Multiple display and customizable interface options

HL7 support

CTG scoring system

Built-in thermal printer and optional network printer

Battery life up to 4 hours

Fully equipped with TOCO and ultrasound probes – always ready for use



Technical Specifications:

Dimensions: 372 (W) × 262 (D) × 84 (H) mm

Weight: approx. 5 kg

Fetal Heart Rate Measurement Range: 50–240 bpm

Fetal Heart Rate Resolution: 1 bpm

Maternal Heart Rate Range: 15–300 bpm

Maternal Heart Rate Method: Automatic oscillometric

Maternal ECG – Channel Types (Standard): 3-channel: I, II, III

Maternal ECG – Sweep Speed: 25 mm/s, error less than 10%

Data Export: Ethernet / USB

HIS Connectivity: HL7

Power Supply: AC or battery operation

Printer: Built-in thermal printer

Printer Paper: Z-fold, thermal sensitive

Patient Data Storage: 60 hours per patient

Memory Capacity: 500 files or 5,000 hours

Battery Runtime: approx. 4 hours

Battery Charging Time: approx. 4 hours

Voltage: 100–240 V AC / 50–60 Hz

Operating Temperature: 0°C to 40°C



Standard Accessories included

2 × Ultrasound probes (IP68, 2.5 m, waterproof)

1 × UC probe (IP68, 2.5 m, waterproof)

1 × Event marker (3 m)

1 × Probe holder (for 3 probes)

1 × Z-fold paper (150 mm × 90 mm – 150 sheets)

1 × Li-ion battery (4400 mAh)

1 × CTG belt (grey)

1 × Power adapter

1 × Maternal function set (ECG, SpO?, Temp, NIBP accessories)
