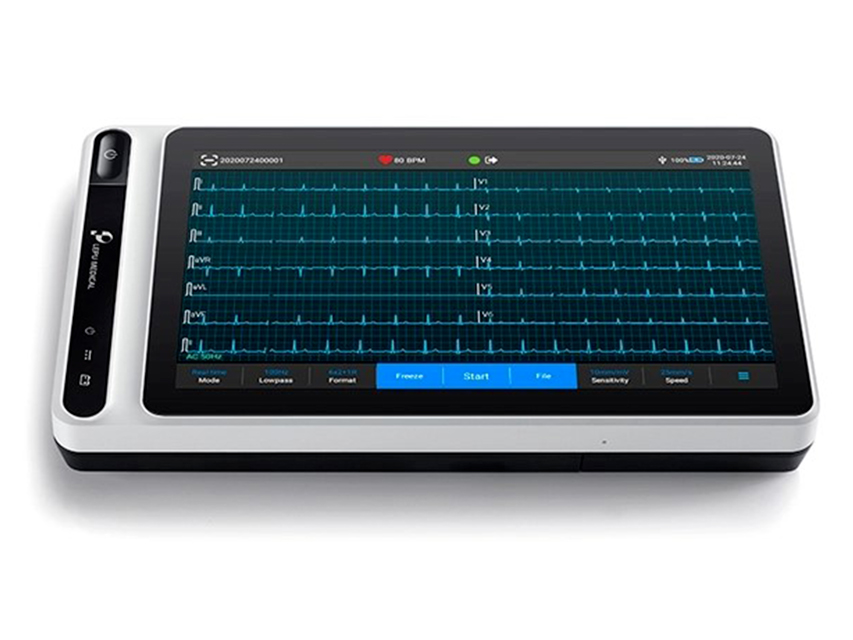

Light and portable ECG tablets for acquisition and displaying of 9/12 lead waveform, as well as heart rate detection.



7” high resolution colour touch screen, easy to operate.



It can store, preview, review, edit and upload patient data through wireless transmission of ECG data via WiFi and mobile networks. Patient data can be exported to USB flash disk via USB connector.

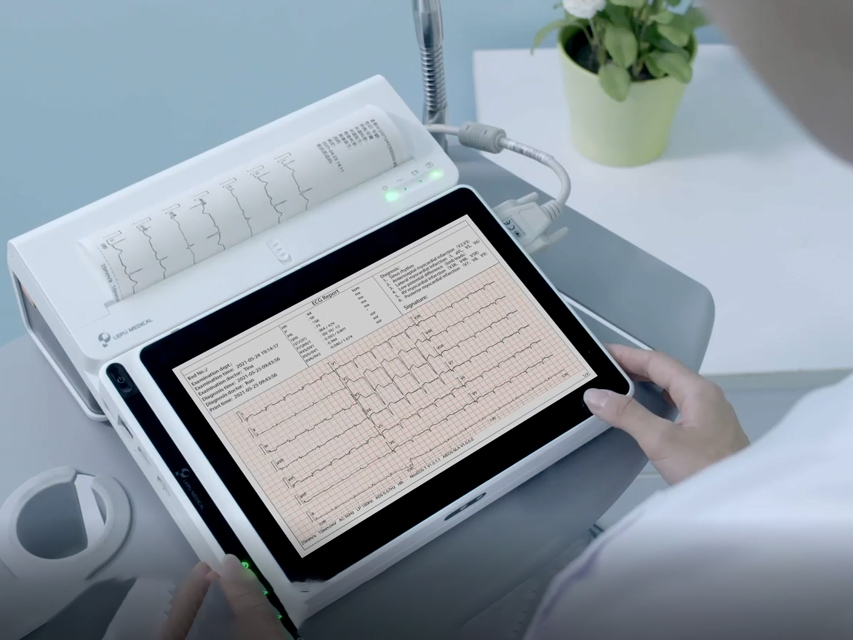

Printer version availabe



Features

7" high-resolution color touch screen, easy to operate.

Portable design, compact in size.

Can be powered by an external DC power supply, a built-in rechargeable lithium battery.

Support synchronous acquisition and display of the 9/12-lead waveform, as well as heart rate detection.

Support automatic pacing detection and marking.

Support auto, RR analysis, HRV, medicine test, ECG event mode.

Provide 4 sampling modes: pre-sampling, real-time sampling, periodic sampling and trigger sampling.

Support automatic pacing detection.

Input patient information via a virtual alphanumeric keyboard and barcode scanning.

Freeze the ECG waveform on the screen.

Output files in multiple formats, such as Carewell ECG, PDF, BMP, HL7, DICOM, SCP.

Store, preview, review, edit, export, upload, print and search patient data.

Support wireless transmission of ECG data via WiFi and mobile networks.

Support laser printer.

Export patient data to USB flash disk via a USB connector.

Support the user login permission control, use password or account & password authentication to use the device.

Support online and offline login to the device, and view the historical patient data of the department according to the login account.

Support connection with AI-ECG PLATFORM in achieving intelligent diagnosis (Optional).

Supplied with standard accessories

1 ECG cable (IEC, Ø 4 mm, banana connector)

6 pcs adult precordial suction electrodes (Ø 4 mm)

4 pcs adult limb clamp electrodes

1 rechargeable lithium battery

1 power adapter

Multilingual manual: GB, IT, on request FR, ES, PT, DE, GR, PL.



Technical Specifications

Glasgow algorhythm

4 sampling modes: pre-sampling, real-time sampling, periodic sampling, and trigger sampling

Automatic pacing detection and marking

Auto RR analysis, HRV, medicine test, ECG event mode

Files in multiple formats: Carewell ECG, PDF, BMP, HL7, DICOM, SCP

Freezing of ECG waveform on the screen

Virtual keybord and barcode scanning to insert patient information

External DC power supply and built-in rechargeable battery

Multilingual selectable software: GB, FR, IT, ES, PT, DE, GR, PL.

ECG leads: 9,12 synchronous acquisition

A/D resolution: 24 bits

Heart rate range: 30 bpm-300bpm ± 1 Input circuit current: = 10 nA

Sensitivity: auto, 2.5, 5, 10, 20, 40 mm/mV, less than ± 5% error

Printing speed: 5, 6.25, 10, 12.5, 25, 50 mm/s, less than ± 3% error

Sampling rate: 32000 samples/sec

Filters: AC (50-60 Hz, off), EMG (25-35-45 Hz off), ADS (0.01-0.05-0.32-0.67 Hz), Low pass filter (75-100-150-300 Hz off)

Frequency response: 0.01-350 Hz (+ 0.4-3.0 db)

Minimum delectable signal: 20 µVp-p

Electrical:

Internal noise: = 12.5 µV

Input impedance: = 100 MO (10 Hz)

Calibration voltage: 1mV ± 2 %

Depolarization voltage: ± 900 mV, ± 5 %

Commode mode rejection: = 140 dB (AC filter on)

Commode mode rejection: = 120 dB (AC filter off)

Amplitude quantisation: 0.95 µV/LSB

Recovery time after discharge: < 10 s

Display: 7" colour touch screen

Size - weight: 19.7x11.2x h 2.6 cm - 0.8 kg
